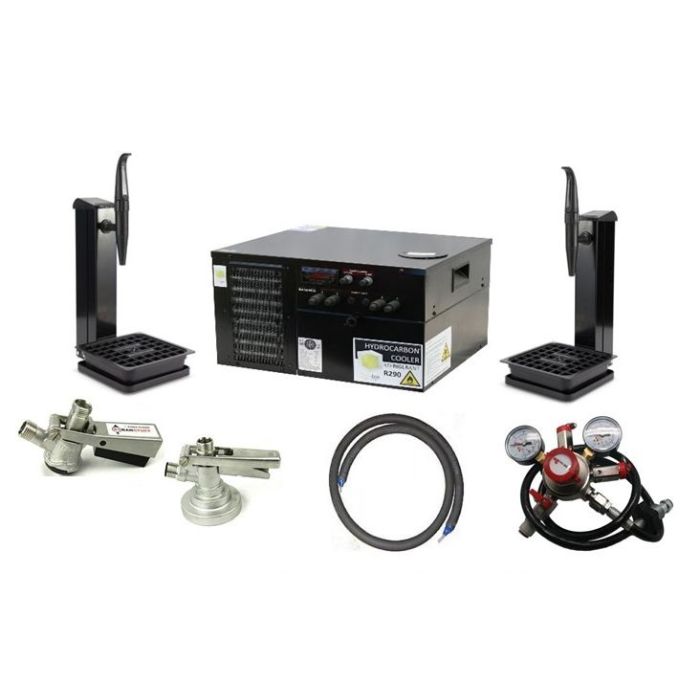

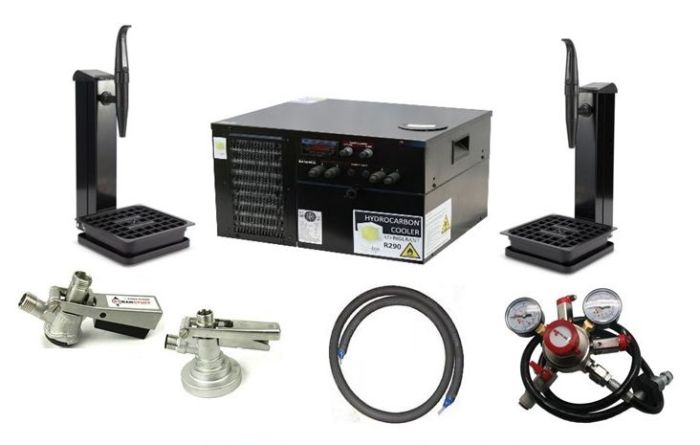

Two Product Mixed Gas Keg Beer Dispense KIT with New Shelf Cooler

This set up is for two products and includes a Mixed Gas Regulator which is ideal for Lager for Bitter applications.

Lager and Cider can be run from it; however, it may not be as lively as a CO2 Regulator – see our CO2 Regulator version of this kit.

All our Coolers include water recirculation.

You have the option to choose two Keg Coupler/Connectors.  Please contact us if you are unsure of the Coupler/Connector you require for the product you are dispensing.

Please note:   If you opt to EXCLUDE FONTS the kit will be sent without any Fonts and you will need to source your own to complete the set up.  If you are supplying your own Fonts, we can send out the correct size reducers to connect to our kit, but please advise in ‘notes’ when placing order, together with what size pipework runs through your Fonts/Pumps.

If you choose to include either black Fonts or chrome Fonts when clicking the drop-down option for Font choice (prices shown), then the kit will come complete with the Font, all fittings and pipe work - you will just require a Gas Bottle and your Keg/Barrel.

Both the black and Chrome Fonts include a 6” Drip Tray and the clamp.

The Chrome Unity Font features:

• Exceptional eye-catching appearance
• High quality stainless steel construction
• Trace cooling to tap
• Easy bar fit - Clamp to bar application
• Supplied with 6" Drip Tray and bracket
• 3/16" product line to the Tap
• Cold water recirculation/product lines within insulated loop with generous tails
• High quality Chrome Excelsior Tap
• The Chrome Font comes wired up for illumination once connected to a transformer

You will require a bar lighting transformer to illuminate and a round Fish Eye Badge for the product you are dispensing.

Please note that a CO2 Gas bottle will not connect to a Mixed Gas Regulator.

For Digital Stat Coolers, you will need to add 50% Glycol to the water tank if you drop the temperature to below minus to avoid freezing the ice bank.

This acts like the anti-freeze and our brand is called ALV Plus Glycol which can be found on our website here

Mixed Gas Regulator Range (Micro Matic)

• Output pressure gauge – 90 psi / 6.2 bar
• Bottle content gauge – 0 – 4500 psi / 315 bar
• Max output pressure – Up to 55 psi / 3.8 bar (Blow-off)
• Twin safety blow-off valves (Ring pull)
• Safety blow-off pressure –  55 psi / 3.8 bar
• Wall Mounted
• John Guest fittings supplied – 3/8” Push Fit
• Splitter
