New Two Product Mixed Gas Keg Beer Dispense Kit With 2 Out Font

This set up is for two products and includes a Mixed Gas Regulator which is ideal for Lager for Bitter applications.

Lager and Cider can be run from it; however, it may not be as lively as a CO2 Regulator – see our CO2 Regulator version of this kit.

All our Coolers include water recirculation.

You have the option to choose two Keg Coupler/Connectors.

Kits include the 2 out Font which will come complete with all fittings, 6” Drip Tray, clamp, and pipework – all you will require is a Gas Bottle and your Keg/Barrel.

You have two options on the chiller with this package:

Option 1 - M2 2 Product Digital Stat Cooler.

The Eco-Friendly Hydrocarbon R290 refrigeration system has been specifically developed and designed for improved energy. It develops 5Kgs of ice with impressive recovery times. The digital thermostat needs to be used with Glycol/ALV for extra cold applications. The temperature can be adjusted to below minus with this unit. (The manual stat coolers are pre-set, and temperatures cannot be altered).

• Ideal for dispensing two products or can used to double chill one product.
• Built-in recirculation pump for ‘chilled to tap’ applications.
• Compact size ideally suited to under-counter installations.


Option 2 - M2 3 Product Manual Stat Cooler

The Eco-Friendly Hydrocarbon R290 refrigeration system has been specifically developed and designed for improved energy. It develops 5Kgs of ice with impressive recovery times.

• Ideal for dispensing up to three products or can be used to double chill one product and use the third line for your second product.
• Built-in recirculation pump for ‘chilled to tap’ applications.
• Compact size ideally suited to under-counter installations.


PLEASE NOTE WITH OPTION 2 WE ONLY SUPPLY THE TWO OUT FONT AND 2 KEG COUPLERS, IF RUNNING 3 LINES, YOU WILL NEED TO PURCHASE THE PARTS FOR THE THIRD LINE (KEG COUPLER, FONT AND PIPEWORK).

The cooler unit gives you the option of running up to three lines, if only using to run two lines you can double chill one of the two products.

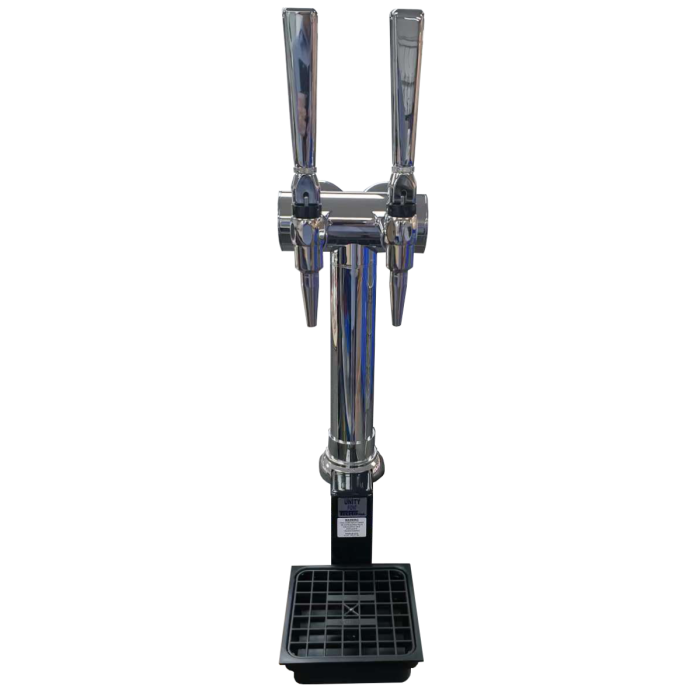

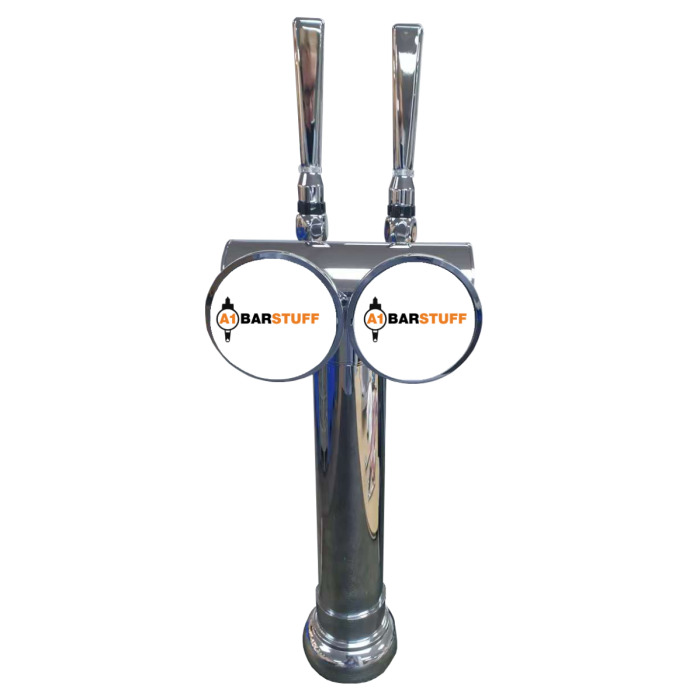

The Chrome 2 Out Font features:

• Exceptional eye-catching appearance
• High quality stainless steel construction
• Trace cooling to tap
• Easy bar fit - Clamp to bar application
• Supplied with 6" Drip Tray and bracket
• 3/16" product line to the Tap
• Cold water recirculation/product lines within insulated loop with generous tails
• High quality Chrome Excelsior Tap
• The Chrome Font comes wired up for illumination once connected to a transformer

You will require a bar lighting transformer to illuminate and a round Fish Eye Badge for the product you are dispensing.

Please note that a CO2 Gas bottle will not connect to a Mixed Gas Regulator.

For Digital Stat Coolers, you will need to add 50% Glycol to the water tank if you drop the temperature to below minus to avoid freezing the ice bank.

This acts like the anti-freeze and our brand is called ALV Plus Glycol which can be found on our website here

Mixed Gas Regulator Range (Micro Matic)

• Output pressure gauge – 90 psi / 6.2 bar
• Bottle content gauge – 0 – 4500 psi / 315 bar
• Max output pressure – Up to 55 psi / 3.8 bar (Blow-off)
• Twin safety blow-off valves (Ring pull)
• Safety blow-off pressure –  55 psi / 3.8 bar
• Wall Mounted
• John Guest fittings supplied – 3/8” Push Fit
• Splitter
